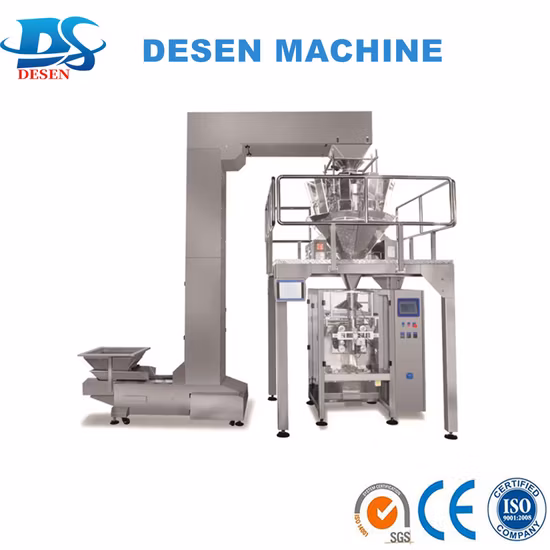

Easy Operate Automatic Vertical Cookies Wafer Biscuit Packing Machine

Easy Operate Automatic Vertical Cookies Wafer Biscuit Packing Machine

Peanut/Coffee Beans/Rice/Tea/Candy/Potato Chips/Snacks/Food Automatic VFFS Vertical Packing Packaging Machine Features 1
SHARE

Description

Basic Info
Model NO. MD-K420
Material Type Grain
Packaging Bag
Packaging Material Film
Weigher Heads 10 Head
Max Single Dump Cap(G) 3~200g
Weighing Accuracy 0.1~1.0g
Maximum Weighing Speed 120wpm
Volume 500ml
Film Width 140~420mm
Packing Speed 15~50bags/Min
Film Pulling Driven System Servo Motor
Horizontal Sealing Driven System Servo Motor
Voltage 4.75kw/220V /50(60)Hz
Gas Consumption 0.15m3/Min
Machine Dimension L*W*H=1325mm *1071mm*2025mm
Machine Weight 600kg
Optional Device Gusset Device
Optional Devices Chain Bag
Transport Package Plywood Crate Wooden Case
Specification MD-K420
Trademark DESEN
Origin Shanghai China
HS Code 8422309090
Production Capacity 5000 Pieces/Year
Product Description

Peanut/Coffee Beans/Rice/Tea/Candy/Potato Chips/Snacks/Food Automatic VFFS Vertical Packing Packaging Machine

Easy Operate Automatic Vertical Cookies Wafer Biscuit Packing Machine

Features

1)The system will finish all the process automatically: feeding, dosing,filling, sealing, date printing and finish product conveying. It has high accurate weighting and high efficiency without broke.
2) Automatic film rectifying deviation funtion.
3) Equipped with famous brand electronic elements such as Yaskawa, SMC, Schneider, Carlo Gavazzi...etc.
4) Famous brand PLC Pneumatic system for vertical and horizontal sealing & packing.
5) SUS304 stainless steel, good material for longlife.

Technical Parameters

TypeMD-K420MD-K520MD-K720MD-K820
Bag length50-300mm80-400mm120-500mm100-500mm
Bag width50-200mm80-250mm120-350mm250-400mm
Max Film width 420mm520mm720mm820mm
Packing speed5-70bags/min5-70bags/min5-50bags/min5-60bags/min
Measuring range100-1200ml3000ml(Max)5000ml(Max)15L (Max)
Air consumption0.65mpa0.65Mpa0.65Mpa0.65Mpa
Gas consumption0.3m³/min0.3m³/min0.5m³/min0.8m³/min
Power voltage220V/380V220V/380V220V/380V220V/380V
Power2.2KW4.0Kw5Kw5Kw
Dimension1320×950×1360mm1150×1795×1650mm1780×1350×1700mm1600×1350×2110mm
Machine weight540Kg600KG700KG900KG
Application
This automatic packaging machine is suitable for packing candy, grain, solid nuts, peanuts,potato chips, coffee beans, snacks, rice, vegetable, salad, meat, sea food, metal accessories...etc.

Optional device:
Gusset deviceNitrogen charging device
Chain bagVibrating device
Punching deviceSealing device
Exhaust/Inflatalbe devicesEasy tear device
PE film sealing Bag support device
Anti-Static electricityEvacuating device
Horizontal seal cooling blowing device Film rectify deviation adjust device
Automatic feeding device

Sample:

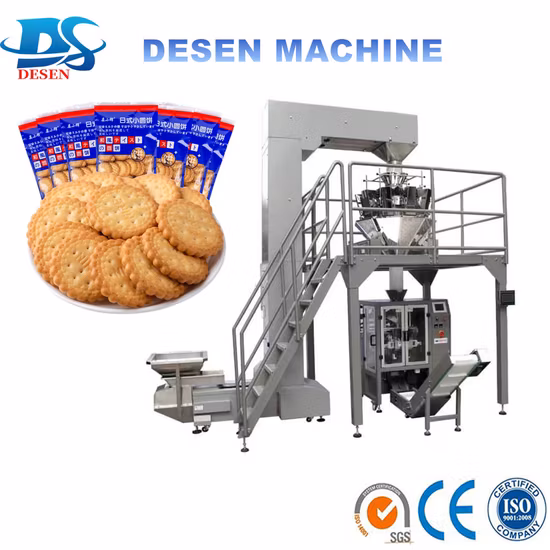

Easy Operate Automatic Vertical Cookies Wafer Biscuit Packing Machine

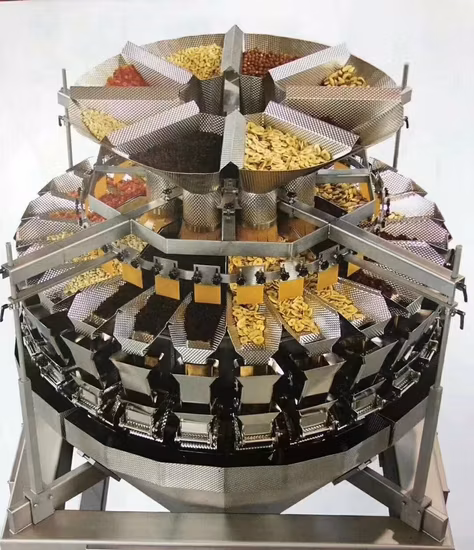

Machine Details :

Easy Operate Automatic Vertical Cookies Wafer Biscuit Packing Machine

Easy Operate Automatic Vertical Cookies Wafer Biscuit Packing Machine



Dimension Drawing :

Easy Operate Automatic Vertical Cookies Wafer Biscuit Packing Machine



Film Installation Diagram :




Auxi Equipment :




Bag Former :




Our plant:
