Bread/Cooking/Cake/Maize/ Rice/Milling/Chicken/Recipe/Corn Organic Flour Weighing Filling Bagging Package Packaging Packing Machine
Description
Basic Info
| Model NO. | PH-420P |
| Forming Function | Forming, Filling, Seal |
| Driven Type | Electric and Pneumatic |
| Material Type | Powder |
| Packaging | Wooden Case |
| Packaging Material | Film |
| Machine Materical | Stainless Steel 304 |
| Working Condition | 220V, 50/60Hz |
| Bag Width Range | 100-350mm |
| Bag Length Range | 100-400mm ( 2 Times Film Pull Can Reach 800mm) |
| Max Packing Range | 5kg |
| Packing Speed | 10-30 Bags/Mins |
| Filling System | Auger Filler |
| Sealing Way | Pillow Bag, Gusset Bag, Quad Bag |
| Max Film Width | 720mm |
| Max Film Diameter | 450mm |
| Transport Package | Strong Non-Fumigation Wooden Case Package |
| Specification | 2 m3 |
| Trademark | PackHome |
| Origin | China |
| HS Code | 8422303090 |
| Production Capacity | 20 Sets/Months |
Product Description

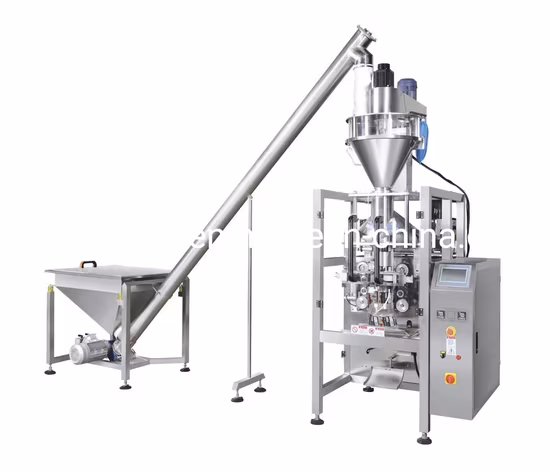

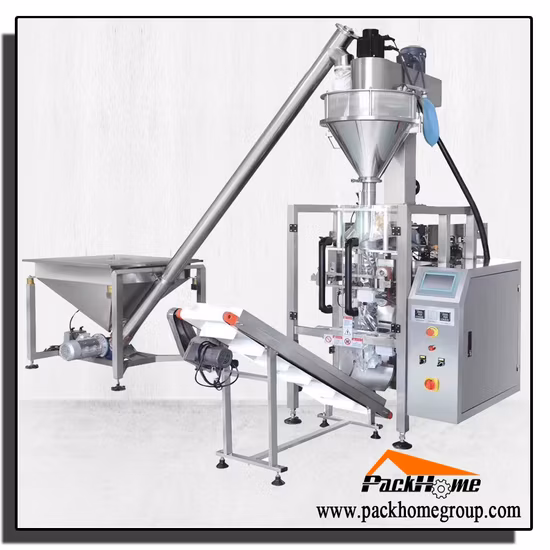

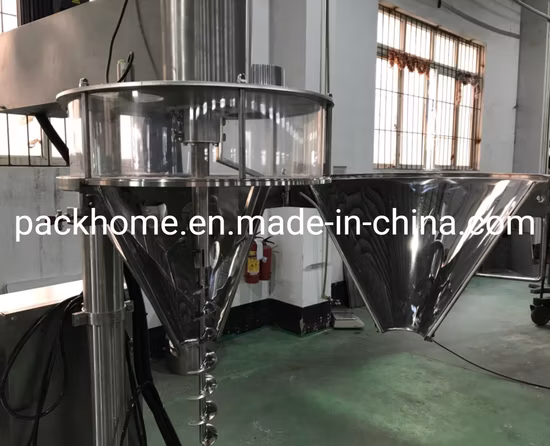

Are you looking for a bagging machine which can packing from 100g-5000g powder product by full automatic?Do you trying to find a economical packing machine model but with reasonable price and assured service?Our Bread/Cooking/Cake/Maize/ Rice/Milling/Chicken/Recipe/Corn Organic Flour Weighing Filling Bagging Package Packaging Packing Machine can be your first choice!Our powder packing machine is suitable for most of the non-sticky powder product (such like: flour, starch, coffee powder, etc)If your product it is sticky powder type which similar like: milk powder, coconut powder, spice powder, chocolate powder,etc.We suggest coating with Teflon material for better meatering and filling.Machine adopted high precision auger filling system which guarantee packing tolerance within 1% ( depending on product) Besides, the auger is very easy to taking out and installation back within 10 minutes even a new user.
User just need put on the packing film, then machine will automatic to forming bag, filling material with the setting weight, printing on the production / expirtation / batch number and sealing the bag tightness. Function like: nitrogen gas feeding and linked bag, hanging hole punch also available!
Available Sealing Way | Pillow Bag, Gusset Bag, Quad Bag, Linked Bag, 4 Sides Seal Bag | |
Sachet size range | Min.Size | 50mm(W) × 80mm(L) |
Max.Size | 450mm(W) × 800mm(L) | |
Filling weight range | ≤5000g ( require change bag former + auger filler) | |
Packing speed | 10-50 bags/min | |
| Power electricity | 220V / 1P / 50Hz / 2-8Kw ( customized) | |
Film roll diameter | ≤Φ300mm | |
Film thickness | 0.04-0.15mm | |
Suitable film material: | PE / PP / OPP / PVC / PET / CPP / NY / AL / VMPET ( at least 2 layer) | |
Machine control system | PLC + Touch screen | |
Available function | Dust cleaning / Thermal transfer printing / Europe hole punching / Nitrogen gas feeding / Air exhaust | |
https://youtu.be/wXzYUtun7WQ (Pillow bag powder package example)
https://youtu.be/JEqBA3Z67kc (Powder 4 sides bag seal package example)
Oversea project case in different countries: Please visit our company official website.
What we do for client:1. Using strong non-fumigation wooden box package.2. All cargo stick with unique client`s shipping mark.
For better offer our suggestion and prepare quotation, hope we can know below info from you:
A. Your bag size
B. Your bag picture
C. Packing weight
D. Packing speed requirement
E. Exactly product need to packed
